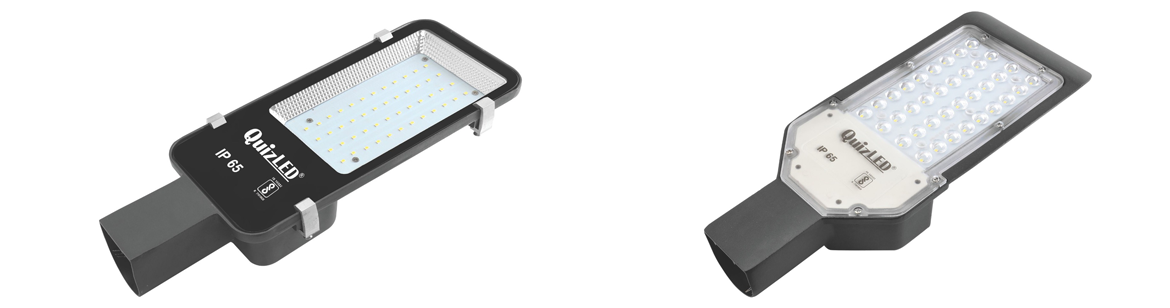

Outdoor Lighting > Street Light
Without Lens(ES/STD)
| Model |
In Put AC Voltage Range |
Surge Protection |
Diamension (LXWXH) |
Weight (GMS) Approx |
Case Material |
| LED STREET LIGHT (SL - 20W) ES - IP65 |
180V-300V |
2.5KV |
240(L) x 95 (W) x 25 Pipe Dia |
581 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 24W) ES - IP65 |
180V-300V |
2.5KV |
240(L) x 95 (W) x 25 Pipe Dia |
581 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 30W) ES - IP65 |
180V-300V |
4KV |
270(L) x 125 (W) x 35 Pipe Dia |
885 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 36W) ES - IP65 |
180V-300V |
4KV |
270(L) x 125 (W) x 35 Pipe Dia |
885 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 50W) ES - IP65 |
180V-300V |
4KV |
270(L) x 125 (W) x 35 Pipe Dia |
1230 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 100W) ES - IP65 |
180V-300V |
6KV |
365(L) x 200 (W) x 35 Pipe Dia |
2640 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 150W) ES - IP65 |
180V-300V |
6KV |
455(L) x 200 (W) x 35 Pipe Dia |
4900 |
Aluuminium Casting |
| Model |
In Put AC Voltage Range |
Current Range |
Surge Protection |
Diamension (LXWXH) |
Weight (GMS) Approx |
Case Material |
| LED STREET LIGHT (SL - 15W) STD - IP65 |
100V-280V |
50V-300mA |
2.5KV |
210(L) x 85 (W) x 25 Pipe Dia |
460 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 20W) STD - IP65 |
100V-280V |
66V-300mA |
2.5KV |
240(L) x 95 (W) x 25 Pipe Dia |
700 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 24W) STD - IP65 |
100V-280V |
75V-400mA |
4KV |
240(L) x 95 (W) x 25 Pipe Dia |
740 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 30W) STD - IP65 |
100V-300V |
50V-600mA |
4KV |
270(L) x 125 (W) x 35 Pipe Dia |
1050 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 36W) STD - IP65 |
100V-300V |
60V-600mA |
4KV |
270(L) x 125 (W) x 35 Pipe Dia |
1080 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 50W) STD - IP65 |
100V-300V |
50V-1A |
6KV |
320(L) x 150 (W) x 35 Pipe Dia |
1455 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 60W) STD - IP65 |
100V-300V |
60V-1A |
6KV |
400(L) x 180 (W) x 35 Pipe Dia |
2330 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 72W) STD - IP65 |
100V-300V |
60V-600mA X02 |
6KV |
400(L) x 180 (W) x 35 Pipe Dia |
2400 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 100W) STD - IP65 |
100V-300V |
50V-1A X 02 |
6KV |
365(L) x 200 (W) x 35 Pipe Dia |
3050 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 120W) STD - IP65 |
100V-300V |
60V-1A X 02 |
6KV |
455(L) x 200 (W) x 35 Pipe Dia |
4900 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 150W) STD - IP65 |
100V-300V |
50V-1A X 03 |
6KV |
455(L) x 200 (W) x 35 Pipe Dia |
5050 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 200W) STD - IP65 |
100V-300V |
50V-1A X 04 |
6KV |
500(L) x 340 (W) x 35 Pipe Dia |
8950 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 250W) STD - IP65 |
100V-300V |
50V-1A X 05 |
6KV |
500(L) x 340 (W) x 35 Pipe Dia |
9050 |
Aluuminium Casting |
With Lens (ES/STD)
| Model |
In Put AC Voltage Range |
Surge Protection |
Diamension (LXWXH) |
Weight (GMS) Approx |
Case Material |
| LED STREET LIGHT (SL - 20W) LENS - ES - IP65 |
100V-280V |
2.5KV |
310(L) x 105 (W) x 30 Pipe Dia |
595 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 24W) LENS - ES - IP65 |
100V-280V |
4KV |
310(L) x 105 (W) x 30 Pipe Dia |
595 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 30W) LENS - ES - IP65 |
100V-300V |
4KV |
360(L) x 130 (W) x 30 Pipe Dia |
785 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 36W) LENS - ES - IP65 |
100V-300V |
4KV |
360(L) x 130 (W) x 30 Pipe Dia |
785 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 50W) LENS - ES - IP65 |
100V-300V |
6KV |
400(L) x 160 (W) x 30 Pipe Dia |
1240 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 100W) LENS - ES - IP65 |
100V-300V |
6KV |
540(L) x 220 (W) x 30 Pipe Dia |
3080 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 150W) LENS - ES - IP65 |
100V-300V |
6KV |
540(L) x 220 (W) x 30 Pipe Dia |
3080 |
Aluuminium Casting |
| Model |
In Put AC Voltage Range |
Current Range |
Surge Protection |
Diamension (LXWXH) |
Weight (GMS) Approx |
Case Material |
| LED STREET LIGHT (SL - 20W) LENS - STD - IP65 |
100V-280V |
60V-300mA |
2.5KV |
310(L) x 105 (W) x 30 Pipe Dia |
595 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 24W) LENS - STD - IP65 |
100V-280V |
60V-400mA |
4KV |
310(L) x 105 (W) x 30 Pipe Dia |
595 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 30W) LENS - STD - IP65 |
100V-300V |
75V-400mA |
4KV |
360(L) x 130 (W) x 30 Pipe Dia |
785 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 36W) LENS - STD - IP65 |
100V-300V |
60V-600mA |
4KV |
360(L) x 130 (W) x 30 Pipe Dia |
785 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 50W) LENS - STD - IP65 |
100V-300V |
50V-1A |
6KV |
400(L) x 160 (W) x 30 Pipe Dia |
1240 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 100W) LENS - STD - IP65 |
100V-300V |
50V-1A X 02 |
6KV |
540(L) x 220 (W) x 30 Pipe Dia |
3080 |
Aluuminium Casting |
| LED STREET LIGHT (SL - 150W) LENS - STD - IP65 |
100V-300V |
50V-1A X 03 |
6KV |
540(L) x 220 (W) x 30 Pipe Dia |
3350 |
Aluuminium Casting |
