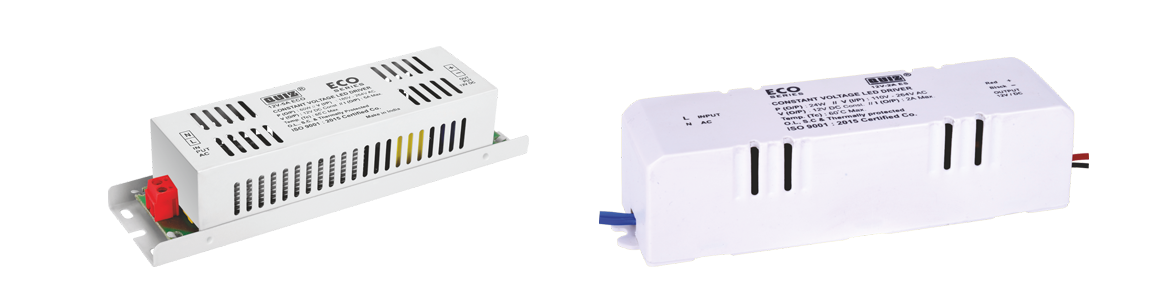

SMPS / Driver / Ballast > SMPS
| Model |
Current Range |
In Put Ac Voltage Range |
Out Put DC Voltage Range |
Diamension (Lxwxh) |
Weight (Gms) Approx |
Efficiency |
Case Material |
| CV LED DRIVER 12V/1A - PB (SMPS) |
1A |
100V-280V |
12V |
100X26X26MM |
45 |
75% |
Plastic Body |
| CV LED DRIVER 12V/2A - PB (SMPS) |
2A |
100V-280V |
12V |
123X34X30MM |
93 |
82% |
Plastic Body |
| CV LED DRIVER 12V/2A - (SMPS) |
2A |
100V-280V |
12V |
104X34X30MM |
96 |
84% |
Ms Power Coated |
| CV LED DRIVER 12V/3A - (SMPS) |
3A |
100V-280V |
12V |
132X34X30MM |
140 |
84% |
Ms Power Coated |
| CV LED DRIVER 12V/5A - (SMPS) |
5A |
100V-280V |
12V |
168X44X37MM |
215 |
84% |
Ms Power Coated |
| CV LED DRIVER 12V/6.5A - (SMPS) |
6.5A |
100V-280V |
12V |
168X44X37MM |
215 |
84% |
Ms Power Coated |
| CV LED DRIVER 12V/8A - (SMPS) |
8A |
100V-280V |
12V |
212X56X54MM |
410 |
84% |
Ms Power Coated + Alluminium |
| CV LED DRIVER 12V/10A - (SMPS) |
10A |
100V-280V |
12V |
212X56X54MM |
420 |
84% |
Ms Power Coated + Alluminium |
| CV LED DRIVER 12V/12A - (SMPS) |
12A |
100V-280V |
12V |
212X56X54MM |
420 |
84% |
Ms Power Coated + Alluminium |
